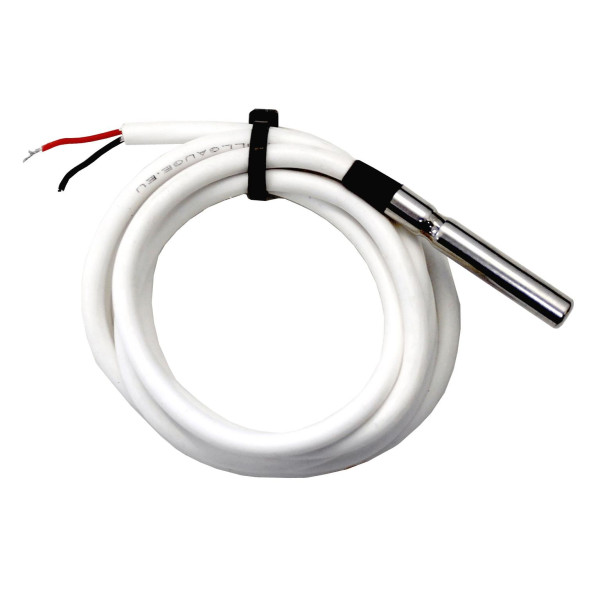

Full Gauge SB-59 NTC Temperature Sensor 8.2 ft (2.5 m), NTC Sensor with silicone cable and covered with stainless steel shell. Operating Temp -58 to 392 F (-50 to 200 C)
SKU
GSB59
Full Gauge SB-59 NTC Temperature Sensor 8.2 ft (2.5 m), NTC Sensor with silicone cable and covered with stainless steel shell. Operating Temp -58 to 392 F (-50 to 200 C)
NTC Resistance of 10K Ohms at 77 F (25 C)
Temperature Range: -58 to 392 F (-50 to 200 C)
PFS Precision Full Scale: 1 percent FS
Response Timer: Less than 10 seconds. Test in water according to IEC 751. Time to reach 63.2 per cent of the temp step
Tensile Test: Pmax 4 kgf
Weight : 0.3 LBR
Volume : 0.01 FTQ
Model : SB59
NTC Resistance of 10K Ohms at 77 F (25 C)
Temperature Range: -58 to 392 F (-50 to 200 C)
PFS Precision Full Scale: 1 percent FS
Response Timer: Less than 10 seconds. Test in water according to IEC 751. Time to reach 63.2 per cent of the temp step
Tensile Test: Pmax 4 kgf
Weight : 0.3 LBR
Volume : 0.01 FTQ
Model : SB59
GSB59
New
Data sheet
- Product Feature
- NTC Resistance of 10K Ohms at 77 F (25 C)
- PFS Precision Full Scale: 1 percent FS
- Response Timer: Less than 10 seconds. Test in water according to IEC 751. Time to reach 63.2 per cent of the temp step
- Response Timer: Less than 10 seconds. Test in water according to IEC 751. Time to reach 63.2 per cent of the temp step
- Tensile Test: Pmax 4 kgf
- Weight
- 0.3 LBR
- Volume
- 0.01 FTQ
- Model
- SB59
- UPC-EAN
- 687152010622
- Sales Unit
- EA
- Origin
- Brazil
- US Tariff Code
- 8418.99.8060
- Base Unit
- EA

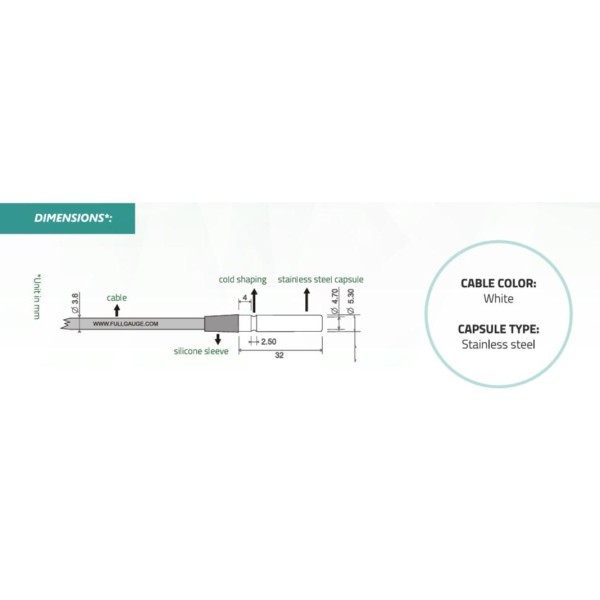

- Dimensions
- 4 x 0.8 x 2.8
