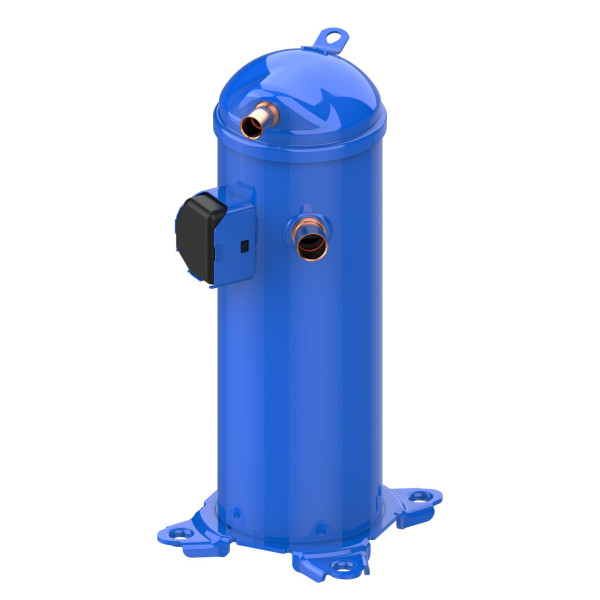

Danfoss DCJ091T2LC6A DCJ091T2LC6 7.5 tons 91,000 btu/h R410A Scroll compressor for Air conditioning 208-230/3/60 V/Ph/Hz Discharge 7/8 in, Suction 1-1/8 in, ODF, PVE Oil 121L5003 Replaces 121L5002
SKU
G0315.090T24
Danfoss DCJ091T2LC6A DCJ091T2LC6 7.5 tons 91,000 btu/h R410A Scroll compressor for Air conditioning 208-230/3/60 V/Ph/Hz Discharge 7/8 in, Suction 1-1/8 in, ODF, PVE Oil 121L5003 Replaces 121L5002
Use: Scroll Compressor Replacement for Air Conditioning Units
Replaces: 120U2307, 121L8589, HCJ090T2LC6A
Danfoss H-series scroll compressor for R22/R407C/R410A is available as single compressor and can be assembled in tandem combinations
Liquid and Suction line connections that line up with those of other major scroll compressor manufacturers, Danfoss scroll compressors can be used to replace compressors made by nearly any company
Aditional Details: 2.46L PVE Oil Charge, Internal overload protector
Weight : 101.86 LBR
Volume : 4.39 FTQ
Model : HCJ090T2LC6A
UPC-EAN : 5702428220156
Use: Scroll Compressor Replacement for Air Conditioning Units
Replaces: 120U2307, 121L8589, HCJ090T2LC6A
Danfoss H-series scroll compressor for R22/R407C/R410A is available as single compressor and can be assembled in tandem combinations
Liquid and Suction line connections that line up with those of other major scroll compressor manufacturers, Danfoss scroll compressors can be used to replace compressors made by nearly any company
Aditional Details: 2.46L PVE Oil Charge, Internal overload protector
Weight : 101.86 LBR
Volume : 4.39 FTQ
Model : HCJ090T2LC6A
UPC-EAN : 5702428220156
G0315.090T24
New
Data sheet
- Product Feature
- Danfoss H-series scroll compressor for R22/R407C/R410A is available as single compressor and can be assembled in tandem combinations
- Informacion Adicional: 2.46L PVE Carga de Aceite, Proteccion de Sobrecarga Interna
- Liquid and Suction line connections that line up with those of other major scroll compressor manufacturers, Danfoss scroll compressors can be used to replace compressors made by nearly any company
- Replaces: 120U2307, 121L8589, HCJ090T2LC6A
- Weight
- 101.86 LBR
- Volume
- 4.39 FTQ
- Model
- HCJ090T2LC6A
- UPC-EAN
- 5702428220156
- Sales Unit
- EA
- Origin
- USA
- US Tariff Code
- 8414.30.8070
- Base Unit
- EA
- Dimensions
- 15 x 22 x 23
- Segment
- Air Conditioning
