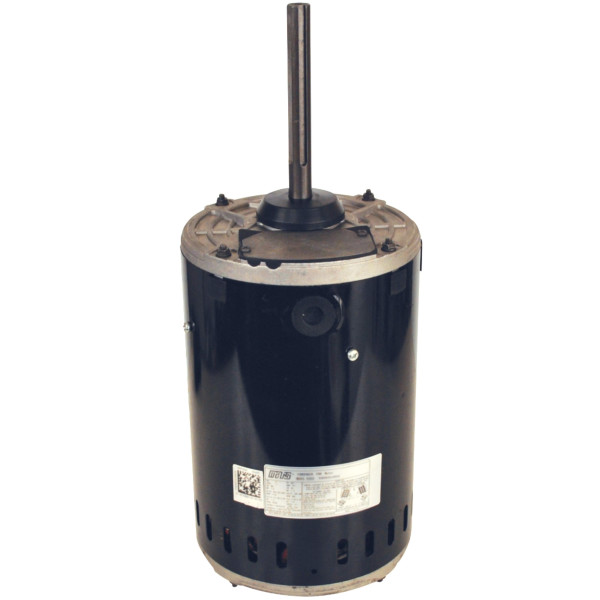

Mars Motor commercial condenser fan Belly Band 1-1/2HP 208-230/460V 50/60Hz 1140rpm 56Y Open Air Continuous duty 10503

Tags rooftop comercial condenser

Mars Motor commercial condenser fan Belly Band 1-1/2HP 208-230/460V 50/60Hz 1140rpm 56Y Open Air Continuous duty 10503
Use: Commercial condenser fan motors may be installed outdoors. These motors need to be mounted within the airflow of the fan for proper cooling
Replaces: AO Smith Century H1051A Baldor CFM3166A US Motors 1819H Fasco D6610 Magnatek H767 MarathonX503
Fits: Use on Trane, Carrier, Climatrol and York units, 5 tons and larger
Features: 70C ambient, VFD compatible, Water Slinger on shaft, Flat and keyway on shaft, Belly Band
Specs: Class H1 insulation, 3 phase 50/60Hz, Continuous duty, air over, Automatic thermal overload protected, cULus
Model : 10503
UPC-EAN : NotAvailable

Reference G10503

Condition New

Data sheet

Product Feature: Features: 70C ambient, VFD compatible, Water Slinger on shaft, Flat and keyway on shaft, Belly Band
Fits: Use on Trane, Carrier, Climatrol and York units, 5 tons and larger
Replaces: AO Smith Century H1051A Baldor CFM3166A US Motors 1819H Fasco D6610 Magnatek H767 MarathonX503
Specs: Class H1 insulation, 3 phase 50/60Hz, Continuous duty, air over, Automatic thermal overload protected, cULus
Use: Commercial condenser fan motors may be installed outdoors. These motors need to be mounted within the airflow of the fan for proper cooling
Model: 10503
UPC-EAN: NotAvailable
Sales Unit: EA
Origin: China
US Tariff Code: 8501.20.6000
Base Unit: EA
